Lapp
0021973
Power cable < 1 kV, for moving application
Manufacturer part number: 0021973
Serie: ÖLFLEX ROBUST 210
Type: ÖLFLEX ROBUST 210
EAN-code: 4044773788631
SKU Omnical: 2557762
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKN
$
24,364.49
per 250 items
$
16,543.49
per 250 items
USD | Excluding VAT
Quantity
x 250 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

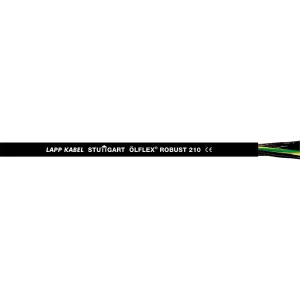

0021973 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application 0021973/250 ÖLFLEX ROBUST 210 4G35
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
4
Nominal cross section conductor
(mm²)
35
With protective conductor
Yes
Core identification
Numbers
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Stranding element
No
Specification core insulation
Polypropylene (PP)
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Other
Specification material outer sheath
Other
Cable geometry
Round
Fca
None
None
None
Halogen free according to EN 60754-1/2
No
Flame retardant
No
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
26.2
Min. permitted bending radius, moving application/free movement
(mm)
393
Min. permitted bending radius, stationary application/permanent installation
(mm)
104.8
Permitted cable outer temperature during assembling/handling
(°C)
-40 - 80
Permitted cable outer temperature after assembling without vibration
(°C)
-50 - 80
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
No
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
item
Weight
1.559 kg
HS code
85444995
