Lapp
0027932
Power cable < 1 kV, for moving application
Manufacturer part number: 0027932
Serie: ÖLFLEX SERVO FD 796 CP
Type: ÖLFLEX SERVO FD 796 CP
EAN-code: 4044777319022
SKU Omnical: 2560453
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKH
$
3,205.95
per 100 items
$
2,176.84
per 100 items
CAD | Excluding VAT
Quantity
x 100 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
0027932 Lapp Power cable < 1 kV, for moving application

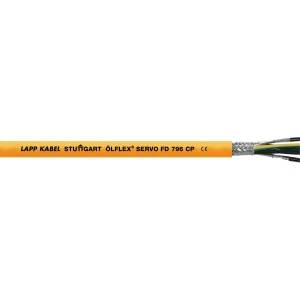

Lapp Power cable < 1 kV, for moving application ÖLFLEX SERVO FD 796 CP 4G1,5+(3x1,0) - 100 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
4
Nominal cross section conductor
(mm²)
1.5
With protective conductor
Yes
Colour outer sheath
Orange
Conductor material
Copper
Conductor surface
Bare
AWG size
16
Conductor category
Class E = very flexible
Specification core insulation
Polypropylene (PP)
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Cable geometry
Round
Eca
None
None
None
Halogen free according to EN 60754-1/2
No
Oil resistant according to IEC 60811-404
No
Outer diameter approx.
(mm)
12
Min. permitted bending radius, moving application with forced guidance
(mm)
90
Min. permitted bending radius, moving application/free movement
(mm)
90
Min. permitted bending radius, stationary application/permanent installation
(mm)
48
Permitted cable outer temperature after assembling without vibration
(°C)
-50 - 80
Nominal voltage U0
(V)
0.6
Nominal voltage U
(V)
1
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Ring
Weight
0.22 kg
HS code
85444995
Country of Origin
IT
