Lapp
0028135
Power cable < 1 kV, for moving application
Manufacturer part number: 0028135
Serie: ÖLFLEX ROBOT 900 DP
Type: ÖLFLEX ROBOT 900 DP
EAN-code: 4044773042474
SKU Omnical: 2560702
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKN
$
5,505.75
per 500 items
$
3,738.40
per 500 items
USD | Excluding VAT
Quantity
x 500 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

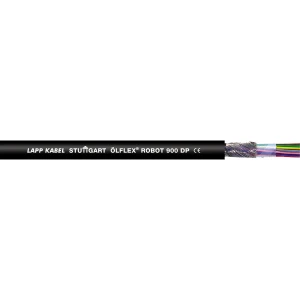

0028135 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application ÖLFLEX ROBOT 900 DP 4x0,34 - 500 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
4
Nominal cross section conductor
(mm²)
0.34
With protective conductor
No
Core identification
Colour
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Stranding element
No
Material core insulation
Other
Specification core insulation
Other
Screen over stranding element
None
Screen over stranding
Other
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Cable geometry
Round
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Oil resistant according to IEC 60811-404
No
Outer diameter approx.
(mm)
5.7
Min. permitted bending radius, moving application with forced guidance
(mm)
85.5
Min. permitted bending radius, moving application/free movement
(mm)
85.5
Min. permitted bending radius, stationary application/permanent installation
(mm)
22.8
Permitted cable outer temperature during assembling/handling
(°C)
-40 - 80
Permitted cable outer temperature after assembling without vibration
(°C)
-50 - 80
Nominal voltage U
(V)
49.9
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Reel
Weight
0.044 kg
HS code
85444993
Country of Origin
FR
