Lapp
0028672
Data and communication cable
Manufacturer part number: 0028672
Serie: UNITRONIC FD P PLUS
Type: UNITRONIC-FD P plus
EAN-code: 4044774897523
SKU Omnical: 2561146
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKO
$
8,119.45
per 1,000 items
$
5,513.11
per 1,000 items
USD | Excluding VAT
Quantity
x 1,000 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

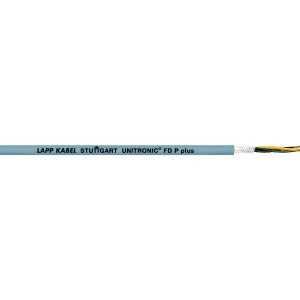

0028672 Lapp Data and communication cable
Lapp Data and communication cable UNITRONIC FD P plus 10X0,34 - 1000 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor
(mm²)
0.34
Conductor category
Class 6 = very flexible
Number of cores
10
Stranding element
No
Material core insulation
Polyolefin
Specification core insulation
Other
Core identification
Colour
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Grey
Cable geometry
Round
Halogen free according to EN 60754-1/2
No
Halogen free according to IEC 60754-2
No
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Low smoke according to IEC 61034-2
No
Oil resistant according to IEC 60811-404
No
Outer diameter approx.
(mm)
8
Min. permitted bending radius, moving application with forced guidance
(mm)
40
Min. permitted bending radius, moving application/free movement
(mm)
40
Min. permitted bending radius, stationary application/permanent installation
(mm)
24
Permitted cable outer temperature during assembling/handling
(°C)
-40 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
UV resistant
Yes
Yes
No
No
No
No
No
No
No
Stock and logistics
Packaging
Reel
Weight
0.085 kg
HS code
85444995
Country of Origin
IT
