Lapp
0038804
Power cable < 1 kV, for moving application
Manufacturer part number: 0038804
Serie: UNITRONIC LIHCH (TP)
Type: UNITRONIC LiHCH(TP)
EAN-code: 4044773051810
SKU Omnical: 1201082
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKO
$
1,353.56
per 100 meter
$
919.07
per 100 meter
CAD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
0038804 Lapp Power cable < 1 kV, for moving application

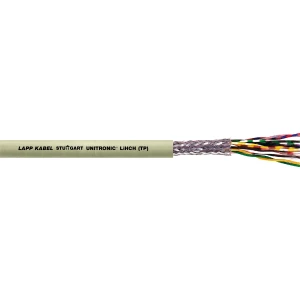

Lapp Power cable < 1 kV, for moving application UNITRONIC LiHCH (TP) 4x2x1 - 1 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
8
Nominal cross section conductor
(mm²)
1
Core identification
Colour
Colour outer sheath
Grey
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Stranding element
Pairs
Material core insulation
Polyolefin
Specification core insulation
Other
Screen over stranding element
None
Screen over stranding
Braiding
Material outer sheath
Other
Cable geometry
Round
Eca
None
None
None
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
Yes
Outer diameter approx.
(mm)
11.5
Min. permitted bending radius, moving application/free movement
(mm)
172.5
Min. permitted bending radius, stationary application/permanent installation
(mm)
69
Permitted cable outer temperature during assembling/handling
(°C)
-5 - 80
Permitted cable outer temperature after assembling without vibration
(°C)
-30 - 70
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
Yes
Yes
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Weight
0.212 kg
HS code
85444993
Country of Origin
DE
