Lapp
0044602
Power cable < 1 kV, for moving application
Manufacturer part number: 0044602
Serie: UNITRONIC LIYCY A
Type: UNITRONIC LiYCY UL/C
EAN-code: 4044773048421
SKU Omnical: 1097167
Stock:
551 x 1 meter.
Delivery time: 1-2 business days.
InStock
YKO
$
160.13
per 100 meter
$
108.73
per 100 meter
USD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

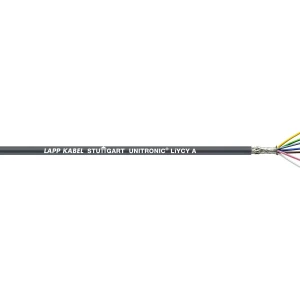

0044602 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application UNITRONIC LiYCY A 2XAWG26/7 - 1 MTR
Datasheet
Number of cores
2
Nominal cross section conductor
(mm²)
2
Core identification
Colour
Colour outer sheath
Grey
Conductor material
Copper
Conductor surface
Tinned
AWG size
26
Conductor category
Class 5 = flexible
Stranding element
No
Material core insulation
Polyvinyl chloride (PVC)
Specification core insulation
Other
Screen over stranding element
None
Screen over stranding
Braiding
Material outer sheath
Polyvinyl chloride (PVC)
Cable geometry
Round
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
4.3
Min. permitted bending radius, moving application/free movement
(mm)
64.5
Min. permitted bending radius, stationary application/permanent installation
(mm)
25.8
Permitted cable outer temperature during assembling/handling
(°C)
-5 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Weight
0.025 kg
HS code
85444995
Country of Origin
DE
