Lapp
0066240
Power cable < 1 kV, for moving application
Manufacturer part number: 0066240
Serie: UNITRONIC LIYCY (TP) A
Type: UNITRONIC LiHCH (TP)
EAN-code: 4044773444339
SKU Omnical: 2565228
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKO
$
698.82
per 152 items
$
474.50
per 152 items
USD | Excluding VAT
Quantity
x 152 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
0066240 Lapp Power cable < 1 kV, for moving application

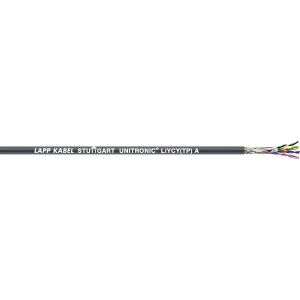

Lapp Power cable < 1 kV, for moving application UNITRONIC LiYCY(TP) A 4X2XAWG22/7 - 152 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
8
Nominal cross section conductor
(mm²)
2
Core identification
Colour
Colour outer sheath
Grey
Conductor material
Copper
Conductor surface
Tinned
AWG size
22
Conductor category
Class 5 = flexible
Stranding element
Pairs
Material core insulation
Polyvinyl chloride (PVC)
Specification core insulation
Other
Screen over stranding element
None
Screen over stranding
Braiding
Material outer sheath
Polyvinyl chloride (PVC)
Cable geometry
Round
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
8.8
Min. permitted bending radius, moving application/free movement
(mm)
132
Min. permitted bending radius, stationary application/permanent installation
(mm)
52.8
Permitted cable outer temperature during assembling/handling
(°C)
-5 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Ring
Weight
0.075 kg
HS code
85444995
Country of Origin
DE
