Lapp
1002175
Power cable < 1 kV, for moving application
Manufacturer part number: 1002175
Serie: ÖLFLEX CLASSIC 115 CH SF
Type: ÖLFLEX CLASSIC 115 CH SF
EAN-code: 4044777898527
SKU Omnical: 2679415
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKD
$
6,087.10
per 500 items
$
4,133.14
per 500 items
USD | Excluding VAT
Quantity
x 500 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

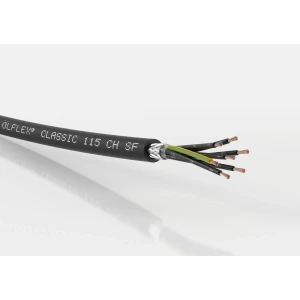

1002175 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application ÖLFLEX CLASSIC 115 CH SF 5G1,5 - 500 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
5
Nominal cross section conductor
(mm²)
1.5
With protective conductor
Yes
Core identification
Numbers
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class E = very flexible
Material core insulation
Other
Specification core insulation
Other
Material outer sheath
Other
Specification material outer sheath
Other
Cable geometry
Round
Halogen free according to EN 60754-1/2
Yes
Outer diameter approx.
(mm)
9.1
Min. permitted bending radius, moving application/free movement
(mm)
136.5
Min. permitted bending radius, stationary application/permanent installation
(mm)
54.6
Permitted cable outer temperature during assembling/handling
(°C)
-30 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
Yes
No
No
No
No
Yes
Low smoke according to IEC 61034-2
Yes
Yes
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Reel
Weight
0.186 kg
HS code
85444995
Country of Origin
QU
