Lapp
1002183
Power cable < 1 kV, for moving application
Manufacturer part number: 1002183
Serie: ÖLFLEX CLASSIC 115 CH SF (TP)
Type: ÖLFLEX CLASSIC 115 CH SF (TP)
EAN-code: 4044777898602
SKU Omnical: 2679447
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKD
$
23,505.32
per 500 items
$
15,960.11
per 500 items
USD | Excluding VAT
Quantity
x 500 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

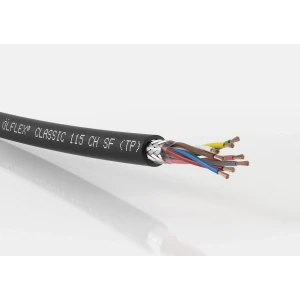

1002183 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application ÖLFLEX CLASSIC 115 CH SF (TP) 12x2x0,75 - 500 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
12
Nominal cross section conductor
(mm²)
2
Core identification
Colour
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class E = very flexible
Material core insulation
Other
Specification core insulation
Other
Cable geometry
Round
Outer diameter approx.
(mm)
16.4
Min. permitted bending radius, moving application/free movement
(mm)
246
Min. permitted bending radius, stationary application/permanent installation
(mm)
98.4
Permitted cable outer temperature during assembling/handling
(°C)
-30 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Yes
No
No
No
Yes
No
Low smoke according to IEC 61034-2
Yes
Yes
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Reel
Weight
0.53 kg
HS code
85444995
Country of Origin
FR
