Lapp
1023239
Power cable < 1 kV, for moving application
Manufacturer part number: 1023239
Serie: ÖLFLEX CHAIN 896 P
Type: ÖLFLEX CHAIN 896 P
EAN-code: 4044776483458
SKU Omnical: 2566979
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKI
$
1,613.50
per 100 items
$
1,095.57
per 100 items
USD | Excluding VAT
Quantity
x 100 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1023239 Lapp Power cable < 1 kV, for moving application

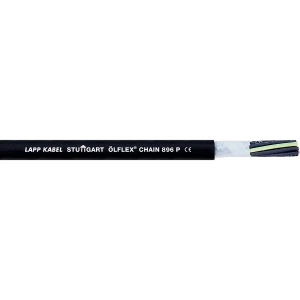

Lapp Power cable < 1 kV, for moving application ÖLFLEX CHAIN 896P 5G2,5 - 100 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
5
Nominal cross section conductor
(mm²)
2.5
With protective conductor
Yes
Core identification
Numbers
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
AWG size
14
Conductor category
Class E = very flexible
Specification core insulation
Polypropylene (PP)
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Cable geometry
Round
Halogen free according to EN 60754-1/2
No
Flame retardant
According to IEC/EN 60332-1-2
Oil resistant according to IEC 60811-404
No
Outer diameter approx.
(mm)
12
Min. permitted bending radius, moving application with forced guidance
(mm)
90
Min. permitted bending radius, moving application/free movement
(mm)
90
Min. permitted bending radius, stationary application/permanent installation
(mm)
48
Permitted cable outer temperature during assembling/handling
(°C)
-40 - 80
Permitted cable outer temperature after assembling without vibration
(°C)
-50 - 90
Nominal voltage U0
(V)
0.6
Nominal voltage U
(V)
500
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Ring
Weight
0.21 kg
HS code
85444995
Country of Origin
DE
