Lapp
1032032
Data and communication cable
Manufacturer part number: 1032032
Serie: UNITRONIC ROBUST
Type: UNITRONIC ROBUST
EAN-code: 4044776769187
SKU Omnical: 2378395
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKO
$
475.35
per 100 meter
$
322.77
per 100 meter
USD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1032032 Lapp Data and communication cable

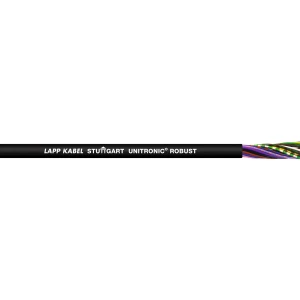

Lapp Data and communication cable UNITRONIC ROBUST 10x0,34 - 1 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor
(mm²)
0.34
Conductor category
Class 5 = flexible
Number of cores
10
Stranding element
No
Specification core insulation
Polypropylene (PP)
Core identification
Colour
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Other
Specification material outer sheath
Other
Colour outer sheath
Black
Cable geometry
Round
Halogen free according to IEC 60754-2
No
Flame retardant
No
Low smoke (according to EN 61034-2)
Yes
Low smoke according to IEC 61034-2
Yes
Outer diameter approx.
(mm)
7.6
Min. permitted bending radius, moving application/free movement
(mm)
76
Min. permitted bending radius, stationary application/permanent installation
(mm)
30.4
Permitted cable outer temperature during assembling/handling
(°C)
-40 - 90
Permitted cable outer temperature after assembling without vibration
(°C)
-50 - 90
UV resistant
Yes
No
No
No
No
No
No
Yes
No
Stock and logistics
Weight
0.093 kg
HS code
85444995
Country of Origin
IT
