Lapp
1119878
Power cable < 1 kV, for moving application
Manufacturer part number: 1119878
Serie: ÖLFLEX CLASSIC 110 BK
Type: ÖLFLEX CLASSIC 110 BK
EAN-code: 4044777287581
SKU Omnical: 2569581
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKB
$
8,388.46
per 500 items
$
5,695.76
per 500 items
CAD | Excluding VAT
Quantity
x 500 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1119878 Lapp Power cable < 1 kV, for moving application

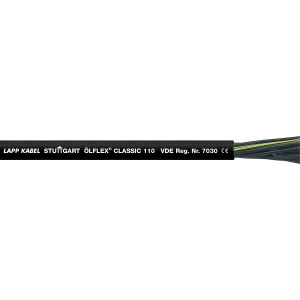

Lapp Power cable < 1 kV, for moving application ÖLFLEX CLASSIC 110 34G0,75 BK - 500 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
34
Nominal cross section conductor
(mm²)
0.75
With protective conductor
Yes
Core identification
Numbers
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Stranding element
No
Material core insulation
Polyvinyl chloride (PVC)
Specification core insulation
Other
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Polyvinyl chloride (PVC)
Specification material outer sheath
Other
Cable geometry
Round
Eca
None
None
None
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
15.9
Min. permitted bending radius, moving application/free movement
(mm)
159
Min. permitted bending radius, stationary application/permanent installation
(mm)
63.6
Permitted cable outer temperature during assembling/handling
(°C)
-15 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Reel
Weight
0.448 kg
HS code
85444995
Country of Origin
BG
