Lapp
1321704
Power cable < 1 kV, for moving application
Manufacturer part number: 1321704
Serie: Aansluit- en stuurstroomkabels
Type: ÖLFLEX 409 CP
EAN-code: 4056157143059
SKU Omnical: 4180368
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKF
$
8,311.35
per 250 items
$
5,643.41
per 250 items
USD | Excluding VAT
Quantity
x 250 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

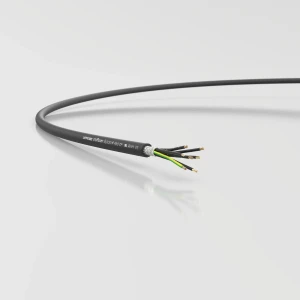

1321704 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application ÖLFLEX 409 CP 4G10 - 250 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
4
Nominal cross section conductor
(mm²)
10
With protective conductor
Yes
Core identification
Numbers
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Material core insulation
Polyvinyl chloride (PVC)
Specification core insulation
Other
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Cable geometry
Round
Oil resistant according to IEC 60811-404
No
Outer diameter approx.
(mm)
16.8
Min. permitted bending radius, moving application/free movement
(mm)
252
Min. permitted bending radius, stationary application/permanent installation
(mm)
67.2
Permitted cable outer temperature during assembling/handling
(°C)
-5 - 80
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Reel
Weight
0.644 kg
HS code
85444995
