Lapp
1600200
Power cable < 1 kV, for moving application
Manufacturer part number: 1600200
Serie: H05RR-F
Type: H05RR-F
EAN-code: 4044773092813
SKU Omnical: 2576225
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKG
$
278.85
per 100 items
$
189.34
per 100 items
USD | Excluding VAT
Quantity
x 100 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1600200 Lapp Power cable < 1 kV, for moving application

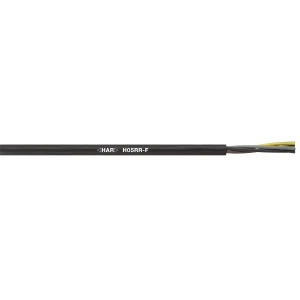

Lapp Power cable < 1 kV, for moving application H05RR-F 3G1,5 - 100 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
3
Nominal cross section conductor
(mm²)
1.5
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Material core insulation
Other
Specification core insulation
Other
Material outer sheath
Other
Specification material outer sheath
Other
Cable geometry
Round
Eca
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
10.4
Min. permitted bending radius, moving application/free movement
(mm)
37.6
Min. permitted bending radius, stationary application/permanent installation
(mm)
28.2
Permitted cable outer temperature during assembling/handling
(°C)
-25 - 60
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 60
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
No
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Ring
Weight
0.135 kg
HS code
85444995
Country of Origin
DE
