Lapp
2170215
Data and communication cable
Manufacturer part number: 2170215
Serie: UNITRONIC BUS LD FD P
Type: UNITRONIC BUS FD P L
EAN-code: 4044773125115
SKU Omnical: 1127127
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKP
$
647.62
per 100 meter
$
439.74
per 100 meter
USD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2170215 Lapp Data and communication cable

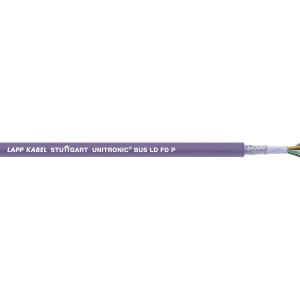

Lapp Data and communication cable UNITRONIC BUS LD FD P 3X2X0,25 - 1 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor
(mm²)
2
Conductor category
Class 6 = very flexible
Number of cores
3
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Other
Core identification
Colour
Screen over stranding element
None
Screen over stranding
Braiding
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Purple
Cable geometry
Round
Halogen free according to IEC 60754-2
No
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Low smoke according to IEC 61034-2
No
Outer diameter approx.
(mm)
8
Min. permitted bending radius, moving application with forced guidance
(mm)
120
Min. permitted bending radius, moving application/free movement
(mm)
120
Min. permitted bending radius, stationary application/permanent installation
(mm)
48
Permitted cable outer temperature during assembling/handling
(°C)
0 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Category
Other
UV resistant
No
Yes
No
No
No
No
No
No
No
Stock and logistics
Weight
0.077 kg
HS code
85444993
Country of Origin
AT
