Lapp
2170278
Data and communication cable
Manufacturer part number: 2170278
Serie: UNITRONIC BUS CAN FD P
Type: UNI BUS FD P CAN UL/
EAN-code: 4044773121742
SKU Omnical: 1146429
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKP
$
818.61
per 100 meter
$
555.84
per 100 meter
USD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2170278 Lapp Data and communication cable

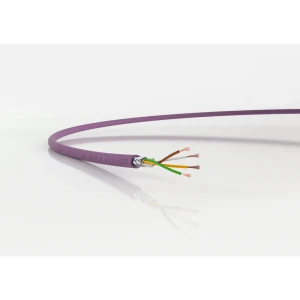

Lapp Data and communication cable UNITRONIC BUS CAN FD P 1x2x0,5 - 1 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor
(mm²)
0.5
Conductor category
Class 5 = flexible
Number of cores
2
Number of stranding elements
1
Stranding element
Pairs
Material core insulation
Polyolefin
Core identification
Colour
Screen over stranding element
None
Screen over stranding
Braiding
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Purple
Cable geometry
Round
Halogen free according to IEC 60754-2
No
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Low smoke according to IEC 61034-2
No
Outer diameter approx.
(mm)
8
Min. permitted bending radius, moving application with forced guidance
(mm)
120
Permitted cable outer temperature during assembling/handling
(°C)
0 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Category
Other
UV resistant
No
Yes
No
No
No
No
No
No
No
Stock and logistics
Weight
0.074 kg
HS code
85444993
Country of Origin
DE
