Lapp
2170295
Data and communication cable
Manufacturer part number: 2170295
Serie: UNITRONIC BUS SAFETY
Type: UNITRONIC BUS SAFETY
EAN-code: 4044773120837
SKU Omnical: 2576871
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKP
$
547.13
per 100 items
$
371.50
per 100 items
USD | Excluding VAT
Quantity
x 100 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2170295 Lapp Data and communication cable

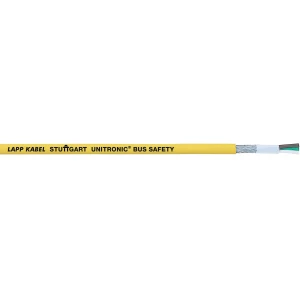

Lapp Data and communication cable UNITRONIC BUS SAFETY 3X0,75 - 100 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor
(mm²)
0.75
Conductor category
Class 1 = solid
Number of cores
3
Stranding element
Triple
Material core insulation
Other
Specification core insulation
Other
Core identification
Colour
Screen over stranding element
None
Screen over stranding
Braiding
Material outer sheath
Other
Specification material outer sheath
Other
Colour outer sheath
Yellow
Cable geometry
Round
Halogen free according to IEC 60754-2
No
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Low smoke according to IEC 61034-2
No
Outer diameter approx.
(mm)
7.6
Min. permitted bending radius, stationary application/permanent installation
(mm)
38
Permitted cable outer temperature during assembling/handling
(°C)
0 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-30 - 80
Category
Other
UV resistant
No
Yes
No
No
No
No
No
No
No
Stock and logistics
Packaging
Ring
Weight
0.068 kg
HS code
85444995
Country of Origin
IT
