Lapp
2170322
Data and communication cable
Manufacturer part number: 2170322
Serie: UNITRONIC BUS PB FD P FC
Type: PROFIBUS UL/CSA high
EAN-code: 4044773120066
SKU Omnical: 2576900
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKP
$
301.92
per 50 items
$
205.00
per 50 items
USD | Excluding VAT
Quantity
x 50 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

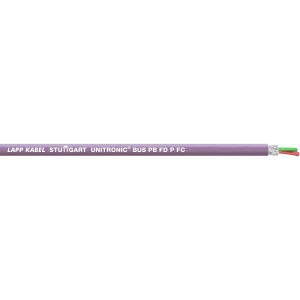

2170322 Lapp Data and communication cable
Lapp Data and communication cable 2170322/50 UNITRONIC BUS PB FD P FC 1X2X0,64
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Diameter conductor
(mm)
0.64
Nominal cross section conductor
(mm²)
2
Conductor category
Class 6 = very flexible
Number of cores
1
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Other
Core identification
Colour
Screen over stranding element
None
Screen over stranding
Foil + braiding
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Purple
Cable geometry
Round
Halogen free according to IEC 60754-2
No
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Low smoke according to IEC 61034-2
No
Oil resistant according to IEC 60811-404
No
Outer diameter approx.
(mm)
8
Min. permitted bending radius, moving application with forced guidance
(mm)
120
Min. permitted bending radius, moving application/free movement
(mm)
120
Permitted cable outer temperature during assembling/handling
(°C)
-30 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Category
Other
UV resistant
No
No
No
No
No
No
No
No
No
Stock and logistics
Packaging
ring
Weight
0.079 kg
HS code
85444993
