Lapp
2170332
Data and communication cable
Manufacturer part number: 2170332
Serie: UNITRONIC BUS PB TORSION
Type: PROFIBUS UL/CSA high
EAN-code: 4044773119596
SKU Omnical: 2576923
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKP
€
3.651,60
per 500 items
€
2.479,44
per 500 items
EUR | Excluding VAT
Quantity
x 500 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2170332 Lapp Data and communication cable

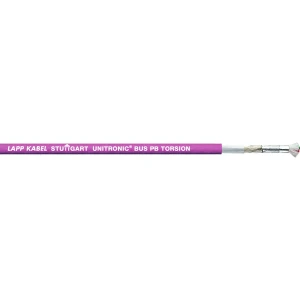

Lapp Data and communication cable UNITRONIC BUS PB TORSION 1X2X0,8 - 500 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Diameter conductor
(mm)
0.64
Nominal cross section conductor
(mm²)
2
Conductor category
Class 6 = very flexible
Number of cores
1
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Other
Core identification
Colour
Screen over stranding element
None
Screen over stranding
Foil + braiding
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Purple
Cable geometry
Round
Halogen free according to IEC 60754-2
No
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Low smoke according to IEC 61034-2
No
Outer diameter approx.
(mm)
8
Min. permitted bending radius, moving application with forced guidance
(mm)
60
Min. permitted bending radius, moving application/free movement
(mm)
60
Min. permitted bending radius, stationary application/permanent installation
(mm)
32
Permitted cable outer temperature during assembling/handling
(°C)
0 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Category
Other
UV resistant
No
Yes
No
No
No
No
No
No
No
Stock and logistics
Packaging
Reel
Weight
0.066 kg
HS code
85444993
Country of Origin
AT
