Lapp
2170341
Data and communication cable
Manufacturer part number: 2170341
Serie: UNITRONIC BUS DN THIN FRNC
Type: UNI BUS DeviceNet Dr
EAN-code: 4044773119183
SKU Omnical: 2576946
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKP
$
6,966.56
per 1,000 items
$
4,730.30
per 1,000 items
USD | Excluding VAT
Quantity
x 1,000 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

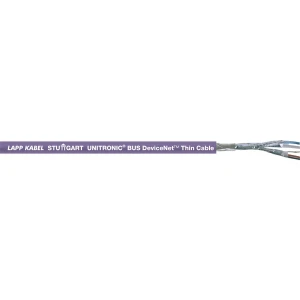

2170341 Lapp Data and communication cable
Lapp Data and communication cable 2170341/1000 UNITRONIC BUS DN THIN FRNC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Diameter conductor
(mm)
0.67
AWG size
Other
Conductor category
Class 2 = stranded
Number of cores
4
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Other
Core identification
Colour
Screen over stranding element
Foil
Screen over stranding
Braiding
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Purple
Cable geometry
Round
Halogen free according to IEC 60754-2
No
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
Yes
Low smoke according to IEC 61034-2
No
Outer diameter approx.
(mm)
6.9
Min. permitted bending radius, stationary application/permanent installation
(mm)
103.5
Permitted cable outer temperature during assembling/handling
(°C)
0 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-25 - 80
Category
Other
UV resistant
Yes
No
No
No
No
No
No
No
No
Stock and logistics
Packaging
item
Weight
0.07 kg
HS code
85444995
