Lapp
2216120
Power cable < 1 kV, for moving application
Manufacturer part number: 2216120
Serie: ÖLFLEX TRAY II CY
Type: ÖLFLEX TRAY II CY
EAN-code: 4044773097191
SKU Omnical: 2577676
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKL
$
2,322.59
per 75 items
$
1,577.04
per 75 items
USD | Excluding VAT
Quantity
x 75 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

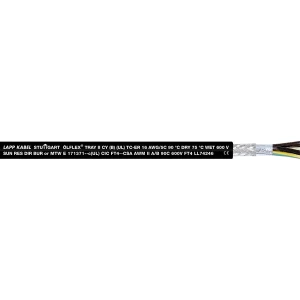

2216120 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application 2216120/75 ÖLFLEX TRAY II CY 12G1,5
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
12
Nominal cross section conductor
(mm²)
1.5
With protective conductor
Yes
Core identification
Numbers
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
AWG size
16
Conductor category
Class 5 = flexible
Material core insulation
Polyvinyl chloride (PVC)
Specification core insulation
Other
Material outer sheath
Other
Specification material outer sheath
Other
Cable geometry
Round
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
15.1
Min. permitted bending radius, moving application/free movement
(mm)
95.2
Min. permitted bending radius, stationary application/permanent installation
(mm)
95.2
Permitted cable outer temperature during assembling/handling
(°C)
-25 - 105
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 105
Nominal voltage U0
(V)
0.6
Nominal voltage U
(V)
500
No
No
No
No
Yes
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
ring
Weight
0.426 kg
HS code
85444995
