Ledvance
4058075757066
Pendant luminaire
Manufacturer part number: 4058075757066
Serie:
Type: Decor Tokio Pendant
EAN-code: 4058075757066
SKU Omnical: 4223953
Stock: 0.
Estimated lead time: 11 days *
PreOrder
YYC
$
131.48
per item
$
102.42
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
4058075757066 Ledvance Pendant luminaire
Ledvance Pendant luminaire Decor Tokio Pendant
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp holder
None
Suitable for number of lamps
0

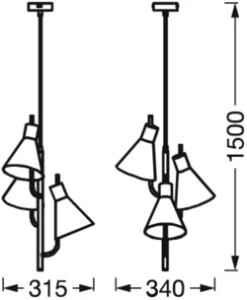

Width
(mm)
315
With control gear
Yes
Nominal voltage
(V)
220 - 240
Direct-/indirect proportion separately controllable
No
Material housing
Steel
Colour housing
Black
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Reflector
None
Length
(mm)
340
With suspension
Yes
Pendant length
(mm)
1500 - 1500
Protection class
II
Degree of protection (IP)
IP20
Luminaire with limited surface temperature, sign "D“
No
With light source
Yes
Suitable for emergency lighting
No
Voltage type
AC
Nominal current
(mA)
76 - 76
Rated luminous flux according to IEC 62722-2-1
(lm)
850
Colour of light
White
Colour temperature
(K)
3000 - 3000
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming programmable
No
Dimming DSI
No
Dimming RF
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
None
Colour consistency (McAdam ellipse)
SDCM6
Rated life time L70/B50 at 25 °C
(h)
30000
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Max. system power
(W)
14
Luminaire efficacy
(lm/W)
60
Power factor
0.7
Height/depth
(mm)
1500
Type of wiring
Ending
Number of poles
2
Connection type
Push-in clamp
Dimming DALI-2
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
Exchangeable control gear
Yes
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
G
Operation by Bluetooth
No
Stock and logistics
Height
0.55 m
Width
0.36 m
Depth
0.36 m
Packaging
item
Weight
1.604 kg
HS code
94051190
