Ledvance
4058075844438
High bay luminaire
Manufacturer part number: 4058075844438
Serie:
Type:
EAN-code: 4058075844438
SKU Omnical: 4344384
Stock: 0.
Estimated lead time: 11 days *
PreOrder
YYD
€
340,00
per item
€
259,76
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
4058075844438 Ledvance High bay luminaire

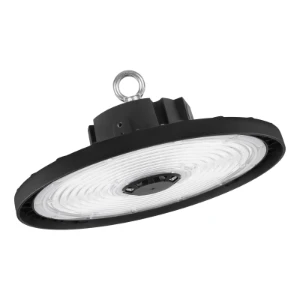

Ledvance High bay luminaire HIGH BAY DALI GEN 5 150W 840 110DEG IP66
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp holder
None
Suitable for number of lamps
0
Type of control gear
Electronic ballast
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Black
With protective cover
Yes
Light sharing
Symmetric
Length
(mm)
321
Height/depth
(mm)
160
Protection class
I
Degree of protection (IP)
IP66
Impact strength
IK10
Ball-proof
No
Luminaire with limited surface temperature, sign "D“
Yes
With light source
Yes
Voltage type
AC
Nominal current
(mA)
665 - 665
Reflector
None
Rated luminous flux according to IEC 62722-2-1
(lm)
26550
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
Suitable for auxiliary lamp
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
None
Colour consistency (McAdam ellipse)
SDCM4
Rated life time L70/B50 at 25 °C
(h)
120000
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC62722-2-1
(°C)
-30 - 50
Emergency power supply integrated
No
Max. system power
(W)
150
Luminaire efficacy
(lm/W)
177
Power factor
0.95
Outer diameter
(mm)
321
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1
Connection type
Other
Exchangeable control gear
No
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16
13
Max. number of luminaires per miniature circuit breaker C16
16
B
Operation by Bluetooth
No
Photobiological safety according to EN 62471
RG1
Stock and logistics
Height
0.17 m
Width
0.37 m
Depth
0.37 m
Packaging
box
Weight
3.553 kg
HS code
94051190
