Ledvance
4099854148880
Ceiling-/wall luminaire
Manufacturer part number: 4099854148880
Serie:
Type: DP HOUSING EM 1200 P 1XLAMP IP65
EAN-code: 4099854148880
SKU Omnical: 4225701
Stock: 0.
Estimated lead time: 11 days *
PreOrder
YYD
€
235,00
per item
€
179,54
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
4099854148880 Ledvance Ceiling-/wall luminaire
Ledvance Ceiling-/wall luminaire DAMP PROOF HOUSING EMERGENCY 1200 P 1XLAMP IP65
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Width
(mm)
65
With light source
No
Lamp holder
G13
Type of control gear
Electronic ballast
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
220 - 240
Material housing
Plastic
Colour housing
Grey
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
Other
Light outlet
Direct
Length
(mm)
1280
Height/depth
(mm)
70
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP65
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Voltage type
AC
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
No
Light distributor
Other
Rated ambient temperature according to IEC62722-2-1
(°C)
5 - 40
Emergency power supply integrated
Yes
Filament test according to IEC 60695-2-11
850 °C - 30 s

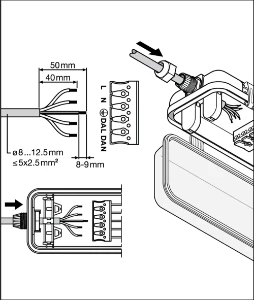

Type of wiring
Suitable for through wiring
Number of poles
5
Connection type
Push-in clamp
Dimming DALI-2
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
Exchangeable control gear
Yes
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
Yes
Compatible with Casambi
No
Stock and logistics
Height
0.08 m
Width
0.07 m
Depth
1.27 m
Packaging
item
Weight
1.373 kg
HS code
94051940
