Ledvance
4099854296215
Batten luminaire
Manufacturer part number: 4099854296215
Serie:
Type:
EAN-code: 4099854296215
SKU Omnical: 4348076
Stock: 0.
Estimated lead time: 11 days *
PreOrder
YYD
€
110,00
per item
€
84,04
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
4099854296215 Ledvance Batten luminaire
Ledvance Batten luminaire LINEAR ULTRA OUTPUT GEN 2 P 1500 48W CPS WT
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Suitable for number of lamps
0
Lamp holder
None

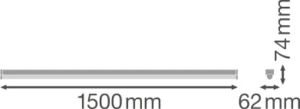

Width
(mm)
65
Type of control gear
Electronic ballast
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Electrical connection with connector system
No
Material
Steel
Colour housing
White
With switch
No
Length
(mm)
1458
Protection class
I
Degree of protection (IP)
IP20
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
With light source
Yes
Voltage type
AC
Nominal current
(mA)
114 - 207
Rated luminous flux according to IEC 62722-2-1
(lm)
7200
Colour temperature
(K)
3000 - 3000
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Rated life time L70/B50 at 25 °C
(h)
88000
Emergency power supply integrated
No
With movement sensor
No
Max. system power
(W)
48
Power factor
0.9
Height/depth
(mm)
74
Type of wiring
Suitable for through wiring
Number of poles
2
Connection type
Push-in clamp
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
Exchangeable control gear
Yes
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
E
Operation by Bluetooth
No
Compatible with Casambi
No
No
Luminaire efficacy
(lm/W)
150
Stock and logistics
Height
0.08 m
Width
1.46 m
Depth
0.07 m
Packaging
item
Weight
1.7 kg
HS code
94051190
