Legrand
026606
Switch disconnector
Manufacturer part number: 026606
Serie: DPX-IS
Type: 250
EAN-code: 3245060266066
SKU Omnical: 3098029
Stock: 0.
Estimated lead time: 6 days *
PreOrder
YSA
$
357.29
per item
$
242.60
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

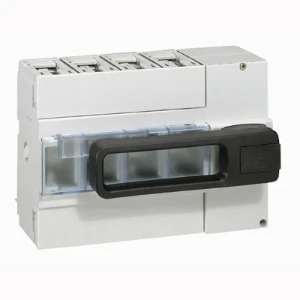

026606 Legrand Switch disconnector
Legrand Switch disconnector Lastsch. 4P - 160A DPX-IS250
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated permanent current Iu
(A)
160
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Device construction
Complete device in housing
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
64
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
3
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
100
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Turn button
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Version as reversing switch
No
Rated operating voltage
(V)
230 - 690
Rated permanent current at AC-21, 400 V
(A)
160
Rated short-time withstand current lcw
(kA)
9
Colour control element
Black
Stock and logistics
Height
165 mm
Width
150 mm
Depth
215 mm
Packaging
item
Weight
2.486 kg
HS code
85365080
Country of Origin
IT
