Legrand
069520
Movement sensor / presence detector complete
Manufacturer part number: 069520
Serie: Plexo
Type: 069520
EAN-code: 3414970935427
SKU Omnical: 3099467
Stock: 0.
Estimated lead time: 9 days *
PreOrder
L36
€
125,72
per item
€
90,64
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

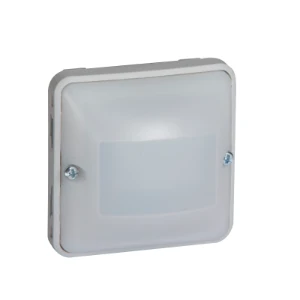

069520 Legrand Movement sensor / presence detector complete
Legrand Movement sensor / presence detector complete Plexo IP55 bew melder 2-dr elem
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Width
(mm)
70.5
Creep-under protection
No
Networkable
No
Optimum mounting height
(m)
1.2
Staircase monitoring
Yes
Bridging switch
No
Max. transmission range sideways
(m)
6
Max. transmission range frontally
(m)
8
Diameter detection range on floor
(m)
6
Suitable for wireless transmission
No
Remote operation
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Matt
Colour
Grey
Transparent
No
Degree of protection (IP)
IP55
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
10
Max. duty cycle
(min)
10
Detection angle horizontal
(°)
120 - 120
Response value luminosity
(lx)
5 - 1275
Max. switching power
(W)
250
Temperature
(°C)
-5 - 45
Substation input
No
Frequency
(Hz)
47 - 63
With alarm function
No
Height
(mm)
70.5
Depth
(mm)
31
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Switch-off delay
(s)
0
Switching-on delay
(s)
0
Pivoting range sensor, horizontal
(°)
0 - 0
Pivoting range sensor, vertical
(°)
0 - 0
Suitable for C-load
Yes
Number of switching zones
1
Connection type
Screwed terminal
Anti-bacterial treatment
No
Impact strength
IK07
Built-in depth
(mm)
31
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
230 - 230
No
No
With connection cable
No
Length of connection cable
(mm)
0
Stock and logistics
Height
72 mm
Width
94 mm
Depth
100 mm
Packaging
item
Weight
0.128 kg
HS code
85365080
Country of Origin
FR
