Legrand
077015

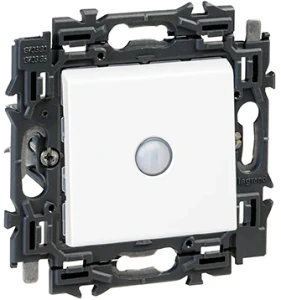

Movement sensor / presence detector complete
Manufacturer part number: 077015
Serie: Mosaic
Type: 077015
EAN-code: 3414970594907
SKU Omnical: 3099500
Stock: 0.
Estimated lead time: 14 days *
PreOrder
L36
$
62.38
per item
$
44.97
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
077015 Legrand Movement sensor / presence detector complete
Legrand Movement sensor / presence detector complete Mosaic ecowisselsch 2m wit
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
Yes
Animal zone
No
Width
(mm)
74.7
Creep-under protection
No
Networkable
No
Optimum mounting height
(m)
1.2
Staircase monitoring
Yes
Bridging switch
Yes
Max. transmission range sideways
(m)
6
Max. transmission range frontally
(m)
8
Diameter detection range on floor
(m)
6
Suitable for wireless transmission
No
Remote operation
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
No
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Degree of protection (IP)
IP40
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
600
Max. duty cycle
(min)
10
Detection angle horizontal
(°)
130 - 130
Response value luminosity
(lx)
0 - 0
Max. switching power
(W)
150
Temperature
(°C)
-5 - 45
Max. starting current
(A)
0.05
Substation input
Yes
Control current
(mA)
0.05
Frequency
(Hz)
47 - 53
With alarm function
No
Height
(mm)
74.7
Depth
(mm)
32.1
With DALI interface
No
With remote control
No
Connection type
Screwed terminal
Anti-bacterial treatment
No
Impact strength
IK02
Built-in depth
(mm)
32.1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
230 - 230
No
No
With connection cable
No
Length of connection cable
(mm)
0
Stock and logistics
Height
0.075 m
Width
0.055 m
Depth
0.057 m
Packaging
box
Weight
0.061 kg
HS code
85365080
Country of Origin
IT
