Legrand
088016

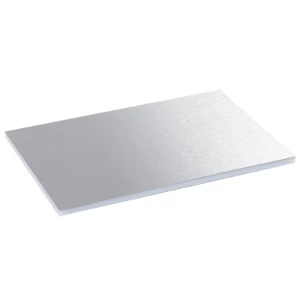

Device installation insert for underfloor-installation
Manufacturer part number: 088016
Serie: IK-4
Type: IK-4
EAN-code: 3414970891266
SKU Omnical: 3098229
Stock: 0.
Estimated lead time: 9 days *
PreOrder
P82
€
59,81
per item
€
33,31
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
088016 Legrand Device installation insert for underfloor-installation
Legrand Device installation insert for underfloor-installation Afdkplt RVS-deks kunst 12/18 tapijt
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wet cleaning
Yes
Suitable for sub-floor duct
No
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Number of device cups
1
Material
Stainless steel
Surface protection
Structured
With opening carpeting
No
Depth of flooring recess
(mm)
8
Protective frame carpeting
Yes
Min. built-in depth
(mm)
7.5
Colour
Other
Length external dimension
(mm)
246
Width outside dimension
(mm)
156
Outer diameter
(mm)
0
Length built-in dimension
(mm)
244.5
Width built-in dimension
(mm)
154.8
Built-in diameter
(mm)
0
Cover model
Rectangular
Material housing
Stainless steel
Surface protection housing
Other
Outer width
(mm)
156
Outer length
(mm)
246
Stock and logistics
Height
20 mm
Width
320 mm
Depth
330 mm
Packaging
item
Weight
0.737 kg
HS code
85389099
Country of Origin
FR
