Legrand
407425
Miniature circuit breaker (MCB)
Manufacturer part number: 407425
Serie: DIN
Type: DX3
EAN-code: 3245064074254
SKU Omnical: 3098401
Stock: 0.
Estimated lead time: 9 days *
PreOrder
L14
$
52.22
per item
$
35.46
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

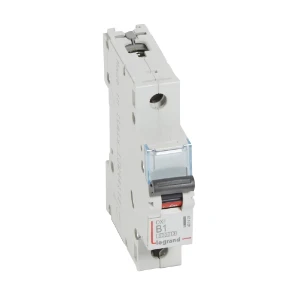

407425 Legrand Miniature circuit breaker (MCB)
Legrand Miniature circuit breaker (MCB) Autom. DX³ 6000A/10kA 1P B01
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
1
Number of poles (total)
1
Concurrently switching neutral conductor
No
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
10
Rated voltage
(V)
230
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth
(mm)
44
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
Yes
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 70
Connectable conductor cross section multi-wired
(mm²)
1.5 - 25
Connectable conductor cross section solid-core
(mm²)
1.5 - 35
Explosion-proof
No
Flush-mounted installation
Yes
Stock and logistics
Height
26 mm
Width
86 mm
Depth
98 mm
Packaging
item
Weight
0.147 kg
HS code
85362010
Country of Origin
IT
