Legrand
422099
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 422099
Serie: DPX3
Type: 630
EAN-code: 3414970378958
SKU Omnical: 2310197
Stock: 0.
Estimated lead time: 25 days *
PreOrder
L46
$
3,420.03
per item
$
2,322.20
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
422099 Legrand Power circuit-breaker for trafo/generator/installation protection

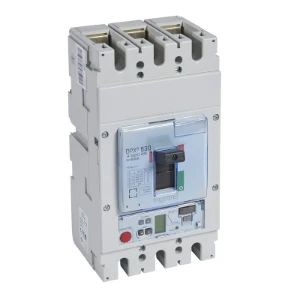

Legrand Power circuit-breaker for trafo/generator/installation protection DPX³630 S2+meten 3P 500A 36kA 400V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
500
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
36
Overload release current setting
(A)
200 - 500
Adjustment range short-term delayed short-circuit release
(A)
300 - 5000
Adjustment range undelayed short-circuit release
(A)
5000 - 5000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
2
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
2
With switched-off indicator
Yes
With under voltage release
Yes
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP30
Rated voltage
(V)
220 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
Yes
Stock and logistics
Height
175 mm
Width
195 mm
Depth
270 mm
Packaging
item
Weight
5.92 kg
HS code
85362090
Country of Origin
IT
