Legrand
423642
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 423642
Serie: DPX3
Type: 125HP
EAN-code: 3414971506312
SKU Omnical: 4144004
Stock: 0.
Estimated lead time: 14 days *
PreOrder
L46
€
316,73
per item
€
215,06
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
423642 Legrand Power circuit-breaker for trafo/generator/installation protection

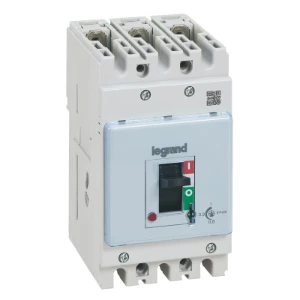

Legrand Power circuit-breaker for trafo/generator/installation protection DPX³ HP 125 TM 25A 3P 50kA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
25
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
50
Overload release current setting
(A)
20 - 25
Adjustment range undelayed short-circuit release
(A)
320 - 480
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
2
With switched-off indicator
Yes
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive optional
No
Motor drive integrated
No
Degree of protection (IP)
IP30
Rated voltage
(V)
220 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Stock and logistics
Height
0.17 m
Width
0.085 m
Depth
0.125 m
Packaging
box
Weight
1.039 kg
HS code
85362010
Country of Origin
IT
