Legrand
741260

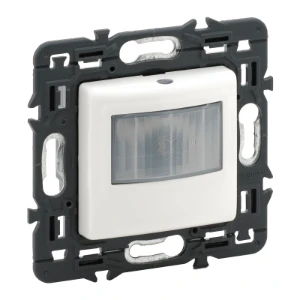

Movement sensor / presence detector complete
Manufacturer part number: 741260
Serie: Valena Next
Type: Schakelmateriaal
EAN-code: 3414971264984
SKU Omnical: 3296822
Stock: 0.
Estimated lead time: 9 days *
PreOrder
L36
€
156,98
per item
€
113,18
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
741260 Legrand Movement sensor / presence detector complete
Legrand Movement sensor / presence detector complete Val autom. schak. 2 dr.+on/off vol.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
Yes
HVAC-control
No
Forced switch off
No
Animal zone
No
Width
(mm)
74
Creep-under protection
No
Networkable
No
Optimum mounting height
(m)
1.2
Staircase monitoring
Yes
Bridging switch
No
Max. transmission range sideways
(m)
6
Max. transmission range frontally
(m)
8
Diameter detection range on floor
(m)
6
Suitable for wireless transmission
No
Remote operation
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Degree of protection (IP)
IP41
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
5
Max. duty cycle
(min)
30
Detection angle horizontal
(°)
120 - 120
Response value luminosity
(lx)
5 - 1275
Max. switching power
(W)
250
Temperature
(°C)
-5 - 45
Max. starting current
(A)
1.8
Substation input
No
Control current
(mA)
1.8
Frequency
(Hz)
50 - 60
With alarm function
No
Height
(mm)
74
Depth
(mm)
51.5
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Switch-off delay
(s)
0
Switching-on delay
(s)
0
Pivoting range sensor, horizontal
(°)
0 - 0
Pivoting range sensor, vertical
(°)
0 - 0
Suitable for C-load
Yes
Number of switching zones
1
Connection type
Screwed terminal
Anti-bacterial treatment
No
Impact strength
IK04
Built-in width
(mm)
40
Built-in depth
(mm)
32
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
230 - 230
No
No
With connection cable
No
Length of connection cable
(mm)
0
Stock and logistics
Height
72 mm
Width
94 mm
Depth
100 mm
Packaging
item
Weight
0.035 kg
HS code
85365080
Country of Origin
FR
