Legrand
741563A
Dimmer
Manufacturer part number: 741563A
Serie:
Type:
EAN-code: 3414972405225
SKU Omnical: 4272740
Stock: 0.
Estimated lead time: 14 days *
PreOrder
L36
€
128,81
per item
€
92,87
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

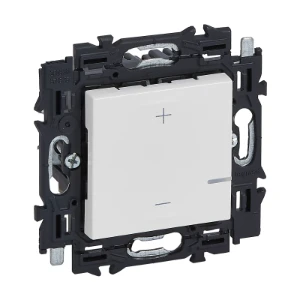

741563A Legrand Dimmer
Legrand Dimmer VN dimmer 2dr klauwen 2m wit
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Assembly arrangement
Basic element with complete housing
Method of operation
Push button
Serial dimmer
No
Type of load
Universal and LED Retrofit
Substation input
Yes
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with claw and screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP20
Frequency
(Hz)
50 - 60
Control voltage
(V)
110 - 230
Device width
(mm)
74
Device height
(mm)
74
Device depth
(mm)
44.5
Nominal voltage
(V)
110 - 230
App control via Bluetooth
No
Dimming phase cut-on
Yes
Dimming phase cut-off
Yes
Impact strength
IK04
Nominal power resistive load
(W)
3 - 125
Nominal power inductive load
(VA)
3 - 125
Nominal power capacitive load
(VA)
3 - 125
Connection type
Screwed terminal
Core cross section
(mm²)
1.5 - 2.5
Min. depth of built-in installation box
(mm)
40
Max. switching power LED
(W)
125
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Yes
Power consumption
(W)
0.3
Stock and logistics
Height
72 mm
Width
94 mm
Depth
100 mm
Packaging
item
Weight
0.115 kg
HS code
85365080
Country of Origin
FR
