Legrand
CP120002

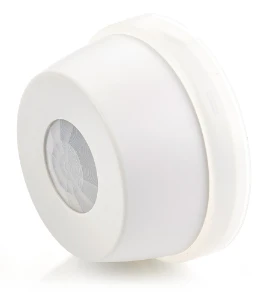

Movement sensor / presence detector complete
Manufacturer part number: CP120002
Serie: CP Electronics
Type: EBDSM
EAN-code: 5012774621676
SKU Omnical: 3100115
Stock: 0.
Estimated lead time: 6 days *
PreOrder
L37
$
166.96
per item
$
118.04
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
CP120002 Legrand Movement sensor / presence detector complete
Legrand Movement sensor / presence detector complete CP EBDSM PIR opb ON/OFF IP40/IP54
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Presence detector
Constant light control
Yes
HVAC-control
No
Forced switch off
Yes
Animal zone
No
Width
(mm)
94
Creep-under protection
No
Networkable
No
Optimum mounting height
(m)
2.8
Staircase monitoring
Yes
Bridging switch
No
Max. transmission range sideways
(m)
3.5
Max. transmission range frontally
(m)
3.5
Diameter detection range on floor
(m)
7
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Surface mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9002
Transparent
No
Degree of protection (IP)
IP40
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
0.5
Max. duty cycle
(min)
99
Detection angle horizontal
(°)
360 - 360
Response value luminosity
(lx)
0 - 2000
Max. switching power
(W)
2300
Temperature
(°C)
-10 - 35
Max. starting current
(A)
80
Substation input
No
Control current
(mA)
3.148
Frequency
(Hz)
50 - 50
With alarm function
No
Height
(mm)
94
Depth
(mm)
50
Sensor type
Passive infrared
With DALI interface
No
With remote control
Yes
Switch-off delay
(s)
10
Switching-on delay
(s)
1
Pivoting range sensor, horizontal
(°)
0 - 0
Pivoting range sensor, vertical
(°)
0 - 0
Suitable for C-load
No
Number of switching zones
1
Forced switch on
Yes
Max. presence range
(m²)
50
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Connection type
Screwed terminal
Anti-bacterial treatment
No
Impact strength
IK05
Diameter
(mm)
96.5
Built-in depth
(mm)
0
Nominal voltage
(V)
230 - 230
No
No
With connection cable
No
Length of connection cable
(mm)
0
Stock and logistics
Height
80 mm
Width
100 mm
Depth
100 mm
Packaging
item
Weight
0.18 kg
HS code
85365080
Country of Origin
XU
