Lumiko
860162
LED driver
Manufacturer part number: 860162
Serie: Led Driver Constante Spanning
Type: LB-LD-24V-100
EAN-code: 8716643040243
SKU Omnical: 3079503
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K74
€
85,28
per item
€
69,42
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

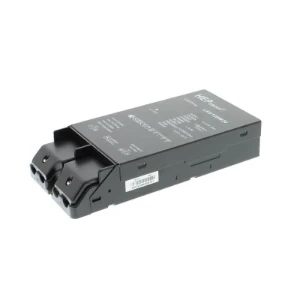

860162 Lumiko LED driver
Lumiko LED driver Leddriver constante Spanning 24V max 100W
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Static
Suitable for outdoor use
Yes
Type of dimming
Not dimmable
Housing
Metal housing
Output power
(W)
30 - 100
Width
(mm)
30
Degree of protection (IP)
IP67
Length
(mm)
305
Height
(mm)
21
Suitable for constant current
No
Suitable for constant voltage
Yes
Output voltage
(V)
24 - 24
Suitable for DC-voltage (primary side)
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Constant light output (CLO)
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Dimmable
No
Dimming DALI-2
No
Input voltage
(V)
176 - 264
Frequency input voltage
(Hz)
50 - 60
Independently operating
Yes
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Short-circuit protected
Yes
No
Efficiency
(%)
92
(kV)
6
(kV)
4
None
Ambient temperature
(°C)
-20 - 50
Max. number of luminaires per miniature circuit breaker B16
10
Max. number of luminaires per miniature circuit breaker C16
16
Stock and logistics
Height
2.5 cm
Width
6 cm
Depth
38 cm
Packaging
box
Weight
460 g
HS code
85366110
