Lumiko
860198
LED driver
Manufacturer part number: 860198
Serie:
Type: LB-LD-24V-400WD
EAN-code: 8716643079137
SKU Omnical: 4301252
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K74
€
178,88
per item
€
145,61
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

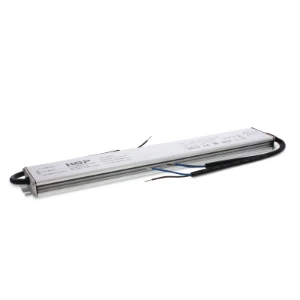

860198 Lumiko LED driver
Lumiko LED driver Leddriver IP67 constante spanning 24V. Pmax = 400W.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Static
Suitable for outdoor use
Yes
Housing
Metal housing
Output power
(W)
120 - 400
Width
(mm)
60
Degree of protection (IP)
IP67
Length
(mm)
400
Height
(mm)
22
Suitable for constant current
No
Suitable for constant voltage
Yes
Output voltage
(V)
24 - 24
Suitable for DC-voltage (primary side)
Yes
Protection class
I
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Constant light output (CLO)
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Dimmable
No
Dimming DALI-2
No
Input voltage
(V)
176 - 264
Frequency input voltage
(Hz)
50 - 60
Independently operating
Yes
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Short-circuit protected
Yes
No
Efficiency
(%)
93
(kV)
6
(kV)
4
None
Ambient temperature
(°C)
-20 - 50
Max. number of luminaires per miniature circuit breaker B16
4
Max. number of luminaires per miniature circuit breaker C16
5
Stock and logistics
Height
3 cm
Width
9 cm
Depth
43 cm
Packaging
box
Weight
1100 g
HS code
85366110
