Lumiko
863640
Downlight/spot/floodlight
Manufacturer part number: 863640
Serie: Led spots, inbouw
Type: LCB-SPOT-3,3NW
EAN-code: 8716643056923
SKU Omnical: 3079639
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K74
$
38.56
per item
$
31.39
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
863640 Lumiko Downlight/spot/floodlight

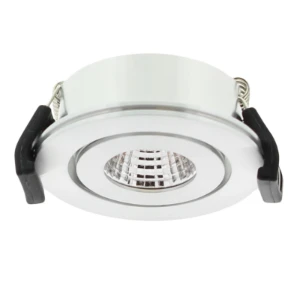

Lumiko Downlight/spot/floodlight Aluminium Venice COB LED spot 3,1W, 350mA, 4000K, IP44
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Type of control gear
LED operating device current-controlled
With control gear
No
Width
(mm)
50
Nominal voltage
(V)
8.8 - 8.8
Material housing
Aluminium
Colour housing
Aluminium
Reflector
None
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Length
(mm)
50
Height/depth
(mm)
29
Outer diameter
(mm)
50
Degree of protection (IP)
IP44
With movement sensor
No
With light source
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
With light sensor
No
Suitable for lamp power
(W)
3.1 - 3.1
Nominal current
(mA)
0 - 350
Max. system power
(W)
3.1
Colour temperature
(K)
4000 - 4000
Voltage type
DC
Rated luminous flux according to IEC 62722-2-1
(lm)
320
Colour of light
White
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Surface protection
Untreated
Material cover
Glass transparent
Dimming manufacturer's proprietary system
No
No dim function
No
Light distributor
Focal lens
Light outlet
Direct
Luminous flux
(lm)
10 - 320
Built-in height/depth
(mm)
27
Number of poles
2
Connection type
Plug
Emergency power supply integrated
No
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Suitable for wall mounting
No
Built-in diameter
(mm)
45 - 48
C
Dimmable
Yes
With presence indicator
No
(lm)
0 - 458
Other
Degree of protection (IP), front side
IP44
None
None
(lm/W)
0 - 148
Built-in width
(mm)
45 - 48
Built-in height
(mm)
29 - 29
Stock and logistics
Height
4 cm
Width
7 cm
Depth
7 cm
Packaging
box
Weight
80 g
HS code
85414010
