Lumiko
863682
Downlight/spot/floodlight
Manufacturer part number: 863682
Serie: Led spots, opbouw
Type: LCB-OPB-WW
EAN-code: 8716643057173
SKU Omnical: 3079647
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K74
$
38.56
per item
$
31.39
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
863682 Lumiko Downlight/spot/floodlight

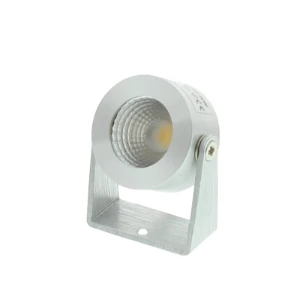

Lumiko Downlight/spot/floodlight Faro COB LED opbouw armatuur, Aluminium, 3,1W, 350mA, 3000K, IP44
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Type of control gear
LED operating device current-controlled
With control gear
No
Width
(mm)
36
Nominal voltage
(V)
8.8 - 8.8
Material housing
Aluminium
Colour housing
Aluminium
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Height/depth
(mm)
45
Outer diameter
(mm)
32
Degree of protection (IP)
IP44
With light source
Yes
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for pedestal/floor mounting
Yes
Adjustability
Swivelling
Suitable for lamp power
(W)
3.1 - 3.1
Nominal current
(mA)
0 - 350
Max. system power
(W)
3.1
Colour temperature
(K)
3000 - 3000
Voltage type
DC
Rated luminous flux according to IEC 62722-2-1
(lm)
320
Colour of light
White
Colour rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
No dim function
No
Light distributor
Reflector
Light outlet
Direct
Luminous flux
(lm)
10 - 320
Number of poles
2
Emergency power supply integrated
No
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Suitable for wall mounting
Yes
E
Dimmable
Yes
With presence indicator
No
(lm)
0 - 320
Other
Degree of protection (IP), front side
IP44
(lm/W)
0 - 103
Stock and logistics
Height
4 cm
Width
7 cm
Depth
7 cm
Packaging
box
Weight
75 g
HS code
85414010
