Lumiko
863851
Downlight/spot/floodlight
Manufacturer part number: 863851
Serie: Led spots, inbouw
Type: VENICE-COB-KIT2-2
EAN-code: 8716643069688
SKU Omnical: 3079662
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K74
€
103,59
per item
€
84,32
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
863851 Lumiko Downlight/spot/floodlight

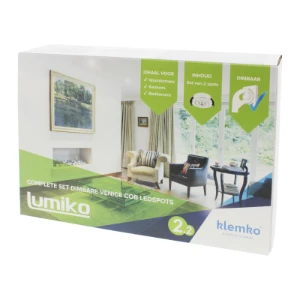

Lumiko Downlight/spot/floodlight Compleet Venice pakket met 2x Venice COB ledspot (3000K), dimbaar
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Type of control gear
LED operating device current-controlled
With control gear
Yes
Nominal voltage
(V)
9.2 - 9.2
Material housing
Aluminium
Colour housing
Aluminium
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Height/depth
(mm)
27
Outer diameter
(mm)
50
Degree of protection (IP)
IP44
With light source
Yes
Suitable for ceiling mounting
Yes
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
Suitable for lamp power
(W)
3.1 - 3.3
Type of dimming
Phase cut-off
Nominal current
(mA)
0 - 350
Max. system power
(W)
3.3
Colour temperature
(K)
3000 - 3000
Voltage type
DC
Rated luminous flux according to IEC 62722-2-1
(lm)
300
Colour of light
White
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Material cover
Glass transparent
No dim function
No
Light distributor
Reflector
Light outlet
Direct
Luminous flux
(lm)
10 - 300
Built-in height/depth
(mm)
27
Number of poles
2
Connection type
Plug
Emergency power supply integrated
No
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Built-in diameter
(mm)
45 - 48
E
Reflector colour
Silver
Dimmable
Yes
With presence indicator
No
(lm)
0 - 320
Other
Degree of protection (IP), front side
IP44
(lm/W)
0 - 103
Stock and logistics
Height
6.5 cm
Width
16 cm
Depth
24 cm
Packaging
box
Weight
400 g
HS code
85366110
