Lumiko
866115
Downlight/spot/floodlight
Manufacturer part number: 866115
Serie: Led armatuur plafond inbouw
Type: LA-PI-ALU42WW-B
EAN-code: 8716643038202
SKU Omnical: 3079698
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K74
$
46.34
per item
$
37.72
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

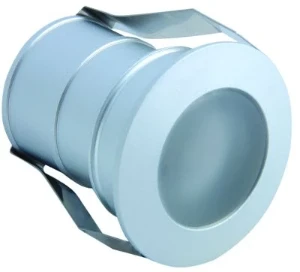

866115 Lumiko Downlight/spot/floodlight
Lumiko Downlight/spot/floodlight Minos Led armatuur, Aluminium, 42mm, 700mA, 3000K, IP44, Diffuus
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Type of control gear
LED operating device current-controlled
With control gear
No
Nominal voltage
(V)
3 - 3
Material housing
Aluminium
Colour housing
Aluminium
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Height/depth
(mm)
52
Outer diameter
(mm)
42
Degree of protection (IP)
IP44
With light source
Yes
Suitable for ceiling mounting
Yes
Suitable for clamp-mounting
Yes
Adjustability
not adjustable
Suitable for lamp power
(W)
2.1 - 2.1
Nominal current
(mA)
0 - 700
Max. system power
(W)
2.1
Colour temperature
(K)
3000 - 3000
Voltage type
DC
Rated luminous flux according to IEC 62722-2-1
(lm)
150
Colour of light
White
Colour rendering index CRI
80-89
Suitable for built-in mounting
Yes
Material cover
Plastic, opal
No dim function
No
Light distributor
Diffuser lens/optic/panel
Light outlet
Direct
Number of poles
2
Emergency power supply integrated
No
Colour consistency (McAdam ellipse)
SDCM2
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Built-in diameter
(mm)
36 - 36
G
Dimmable
Yes
With presence indicator
No
(lm)
0 - 150
Other
Degree of protection (IP), front side
IP44
Built-in height
(mm)
50 - 50
Stock and logistics
Height
6 cm
Width
7 cm
Depth
7 cm
Packaging
box
Weight
116 g
HS code
94051190
