Lumiko
867502
In-ground luminaire
Manufacturer part number: 867502
Serie: Titus vloerspot
Type: VLOERSPOT WW-OD
EAN-code: 8716643063891
SKU Omnical: 3079703
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K74
€
140,40
per item
€
114,29
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

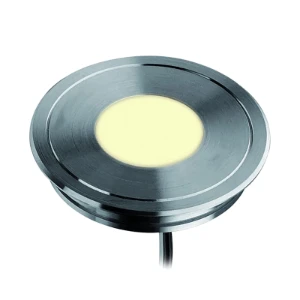

867502 Lumiko In-ground luminaire
Lumiko In-ground luminaire Titus vloerspot, 12V, 2700K, 0,25W, 45mm, PUR kabel, IP68, RVS316L
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp power
(W)
0.25
Type of control gear
LED operating device voltage-controlled
Width
(mm)
45
With control gear
No
Nominal voltage
(V)
12 - 12
Suitable for through-wiring
No
Electrical connection with connector system
No
Colour housing
Stainless steel
Material cover
Glass opal
Adjustable
No
Light sharing
Symmetric
Length
(mm)
45
Height
(mm)
0.6
Outer diameter
(mm)
45
Built-in length
(mm)
40
Built-in width
(mm)
40
Built-in depth
(mm)
10
Built-in diameter
(mm)
40
Over rollable
Yes
Max. surface temperature
(°C)
45
Protection class
III
Degree of protection (IP)
IP68
With light source
Yes
Voltage type
DC
Max. load
(kg)
2000
Rated luminous flux according to IEC 62722-2-1
(lm)
14
Colour of light
White
Colour temperature
(K)
2700 - 2700
Colour rendering index CRI
80-89
Dimming manufacturer's proprietary system
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Beam angle
Extreme wide beam >80°
Suitable for lamp power
(W)
0.25 - 0.25
Built-in height/depth
(mm)
10
Number of poles
2
Connection type
Other
Material housing
Stainless steel
Housing material quality
Stainless steel 316 L (1.4404)
Exchangeable control gear
Yes
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Not required
Luminaire efficacy
(lm/W)
56
Dimmable
Yes
No
(lm)
0 - 14
Stock and logistics
Height
3.5 cm
Width
12.5 cm
Depth
24 cm
Packaging
Blister
Weight
181 g
HS code
94051190
