Lumiko
870060

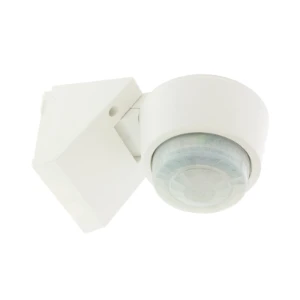

Movement sensor / presence detector complete
Manufacturer part number: 870060
Serie: Bewegingsmelder Opbouw
Type: PIR-HF 240 DUO
EAN-code: 8716643063341
SKU Omnical: 3077531
Stock: 0.
Estimated lead time: 5 days *
PreOrder
J52
€
176,34
per item
€
135,96
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
870060 Lumiko Movement sensor / presence detector complete
Lumiko Movement sensor / presence detector complete PIR Bewegingsmelder opbouw voor koelcellen
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
Yes
Forced switch off
No
Width
(mm)
80
Networkable
No
Optimum mounting height
(m)
2.5
Max. transmission range sideways
(m)
16
Diameter detection range on floor
(m)
16
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Dim function with dimmer basic element
No
Mounting method
Surface mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Surface protection
Other
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP55
Voltage type
AC
Min. switch-on time
(s)
5
Max. duty cycle
(min)
30
Detection angle horizontal
(°)
0 - 240
Response value luminosity
(lx)
5 - 10000
Max. switching power
(W)
2300
Temperature
(°C)
-20 - 50
Frequency
(Hz)
50 - 60
Height
(mm)
99
Sensor type
Other
With DALI interface
No
With remote control
No
Pivoting range sensor, horizontal
(°)
90 - 90
Pivoting range sensor, vertical
(°)
40 - 90
Number of switching zones
1
Scan angle
(°)
240
Max. presence range
(m²)
800
Suitable for ceiling mounting
Yes
Connection type
Screwed terminal
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
220 - 240
Suitable for wall mounting
Yes
No
With connection cable
No
No
Passive infrared/ultrasonic (dual)
Compatible with Casambi
No
Stock and logistics
Height
10 cm
Width
19 cm
Depth
13 cm
Packaging
box
Weight
446 g
