Lumiko
870500
Movement sensor / presence detector complete
Manufacturer part number: 870500
Serie: Bewegingsmelder inbouw
Type: IB-PIR-100
EAN-code: 8716643000698
SKU Omnical: 3077533
Stock: 0.
Estimated lead time: 5 days *
PreOrder
J52
€
83,58
per item
€
64,44
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

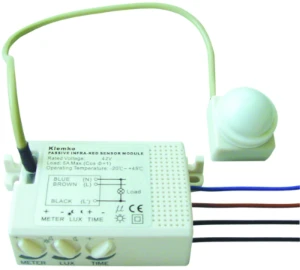

870500 Lumiko Movement sensor / presence detector complete
Lumiko Movement sensor / presence detector complete PIR Bewegingsmelder Inbouw 1000W 360° ø=6M
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Width
(mm)
82
Networkable
No
Optimum mounting height
(m)
2.5
Max. transmission range sideways
(m)
6
Diameter detection range on floor
(m)
6
Suitable for wireless transmission
No
Remote operation
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP55
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
6
Max. duty cycle
(min)
20
Detection angle horizontal
(°)
1 - 100
Response value luminosity
(lx)
5 - 10000
Max. switching power
(W)
1000
Temperature
(°C)
-20 - 45
Max. starting current
(A)
78
Frequency
(Hz)
50 - 60
Height
(mm)
20.5
Depth
(mm)
45
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Number of switching zones
1
Scan angle
(°)
100
Max. presence range
(m²)
30
Connection type
Open end
Built-in diameter
(mm)
22
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
220 - 240
Suitable for wall mounting
No
No
With connection cable
No
Yes
Passive infrared
Compatible with Casambi
No
Stock and logistics
Height
8.5 cm
Width
6.5 cm
Depth
6 cm
Packaging
box
Weight
91 g
HS code
8536508090
