Lumiko
870550

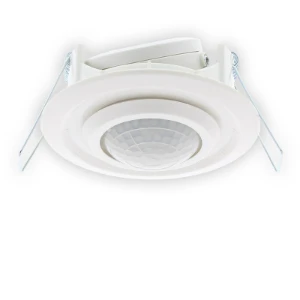

Movement sensor/presence detector complete
Manufacturer part number: 870550
Serie: Aanwezigheiddetector Plafond Inbouw
Type: PLF-IB-PIR
EAN-code: 8716643018730
SKU Omnical: 1028296
Stock:
22 items.
Delivery time: 1-2 business days.
InStock
J52
€
107,68
per item
€
83,02
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
870550 Lumiko Movement sensor/presence detector complete
Lumiko Movement sensor/presence detector complete Aanwezigheiddetector plafond PIR, 2000W, 7M, 40m2, 2 Relais
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
Yes
Forced switch off
No
Width
(mm)
80
Networkable
No
Optimum mounting height
(m)
2.5
Max. reach sideways
(m)
4
Diameter reach on floor
(m)
7
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP44
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
10
Max. duty cycle
(min)
60
Detection angle horizontal
(°)
30 - 360
Response value luminosity
(lx)
10 - 2000
Max. switching power
(W)
2000
Temperature
(°C)
0 - 45
Frequency
(Hz)
50 - 60
Height
(mm)
15
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Number of switching zones
1
Scan angle
(°)
360
Max. presence range
(m²)
165
Suitable for ceiling mounting
Yes
Connection type
Screwed terminal
Diameter
(mm)
80
Built-in depth
(mm)
38
Built-in diameter
(mm)
65
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
220 - 240
Suitable for wall mounting
No
With acoustic sensor
No
With connection cable
No
Connection cable length
(mm)
1
Ceiling built-in mounting without installation box
Yes
Movement sensor/presence detector technology
Passive infrared
Compatible with Casambi
No
Ambient temperature
(°C)
0 - 45
Stock and logistics
Height
7 cm
Width
10 cm
Depth
13 cm
Packaging
box
Weight
280 g
HS code
8536508090
