Full catalog
Categorized products only
Lumiko
870560

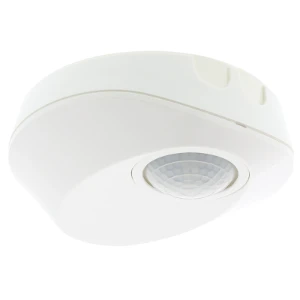

Movement sensor / presence detector complete
Manufacturer part number: 870560
Serie: Aanwezigheiddetector Plafond Opbouw
Type: PLF-OPB-PIR
EAN-code: 8716643018754
SKU Omnical: 1083951
Stock: 0.
Estimated lead time: 5 days *
PreOrder
J52
€
98,82
per item
€
76,19
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
870560 Lumiko Movement sensor / presence detector complete
Lumiko Movement sensor / presence detector complete Aanwezigheiddetector plafond opbouw PIR 2000W, 6M, 40m2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
Yes
Forced switch off
No
Width
(mm)
115
Networkable
No
Optimum mounting height
(m)
2.5
Max. transmission range sideways
(m)
3.5
Max. transmission range frontally
(m)
2
Diameter detection range on floor
(m)
7
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Dim function with dimmer basic element
No
Mounting method
Surface mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP44
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
2
Max. duty cycle
(min)
60
Detection angle horizontal
(°)
1 - 360
Response value luminosity
(lx)
5 - 10000
Max. switching power
(W)
2000
Temperature
(°C)
-10 - 45
Max. starting current
(A)
78
Frequency
(Hz)
50 - 60
Height
(mm)
45
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Number of switching zones
1
Scan angle
(°)
360
Max. presence range
(m²)
165
Suitable for ceiling mounting
Yes
Connection type
Screwed terminal
Diameter
(mm)
115
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
220 - 240
Suitable for wall mounting
No
No
With connection cable
No
No
Passive infrared
Compatible with Casambi
No
Stock and logistics
Height
12 cm
Width
12 cm
Depth
7 cm
Packaging
box
Weight
263 g
HS code
8536508090
