Lumiko
870642
Movement sensor / presence detector complete
Manufacturer part number: 870642
Serie: Aanwezigheiddetector Plafond Inbouw
Type: PLF-IB-DALI-2K-12
EAN-code: 8716643064102
SKU Omnical: 3077540
Stock: 0.
Estimated lead time: 5 days *
PreOrder
J52
€
121,10
per item
€
93,37
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

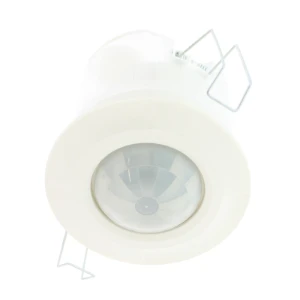

870642 Lumiko Movement sensor / presence detector complete
Lumiko Movement sensor / presence detector complete Aanwezigheiddetector plafond PIR DALI Broadcast, 2 kanaals
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
Yes
HVAC-control
No
Width
(mm)
80
Networkable
No
Optimum mounting height
(m)
2.5
Bridging switch
Yes
Max. transmission range sideways
(m)
6
Diameter detection range on floor
(m)
12
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
Yes
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP54
Voltage type
AC
Min. switch-on time
(s)
60
Max. duty cycle
(min)
60
Response value luminosity
(lx)
10 - 2000
Temperature
(°C)
-20 - 50
Frequency
(Hz)
50 - 60
Height
(mm)
15
Sensor type
Passive infrared
With DALI interface
Yes
With remote control
No
Number of switching zones
2
Scan angle
(°)
360
Max. presence range
(m²)
460
Suitable for ceiling mounting
Yes
Connection type
Screwed terminal
Diameter
(mm)
80
Built-in width
(mm)
67
Built-in depth
(mm)
49
Built-in diameter
(mm)
67
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
220 - 240
Suitable for wall mounting
No
No
With connection cable
No
Yes
Passive infrared
Compatible with Casambi
No
Stock and logistics
Height
9.5 cm
Width
10.5 cm
Depth
10 cm
Packaging
box
Weight
172 g
HS code
8536508090
