Lumiko
870880

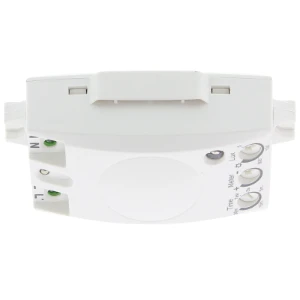

Movement sensor / presence detector complete
Manufacturer part number: 870880
Serie: Aanwezigheiddetector Inbouw
Type: IB-RAD-UNI
EAN-code: 8716643045262
SKU Omnical: 3077545
Stock: 0.
Estimated lead time: 5 days *
PreOrder
J52
$
105.18
per item
$
81.10
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
870880 Lumiko Movement sensor / presence detector complete
Lumiko Movement sensor / presence detector complete Radar detector inbouw, detecteert beweging door materialen heen
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
Yes
Forced switch off
Yes
Width
(mm)
51
Networkable
No
Optimum mounting height
(m)
2.5
Max. transmission range sideways
(m)
10
Diameter detection range on floor
(m)
10
Suitable for wireless transmission
No
Remote operation
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP20
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
5
Max. duty cycle
(min)
30
Detection angle horizontal
(°)
1 - 360
Response value luminosity
(lx)
5 - 1000
Max. switching power
(W)
1000
Temperature
(°C)
-10 - 70
Frequency
(Hz)
50 - 60
Height
(mm)
31.5
Sensor type
High frequency
With DALI interface
No
With remote control
No
Number of switching zones
1
Scan angle
(°)
360
Max. presence range
(m²)
50
Suitable for ceiling mounting
Yes
Connection type
Screwed terminal
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
220 - 240
No
With connection cable
No
High frequency
Compatible with Casambi
No
Stock and logistics
Height
10 cm
Width
6 cm
Depth
4 cm
Packaging
box
Weight
94 g
HS code
8536508090
