Lumiko
870940

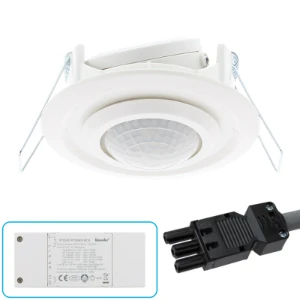

Movement sensor / presence detector complete
Manufacturer part number: 870940
Serie: Aanwezigheiddetector Plafond Inbouw
Type: PLF-IB-PIR-WI
EAN-code: 8716643046191
SKU Omnical: 3077547
Stock: 0.
Estimated lead time: 5 days *
PreOrder
J52
€
143,08
per item
€
110,31
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
870940 Lumiko Movement sensor / presence detector complete
Lumiko Movement sensor / presence detector complete Aanwezigheiddetector Plafond PIR, 230V, 2000W, 6M, 40mm2, Wieland
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
Yes
Forced switch off
No
Width
(mm)
80
Networkable
No
Optimum mounting height
(m)
2.5
Max. transmission range sideways
(m)
4
Diameter detection range on floor
(m)
7
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP44
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
10
Max. duty cycle
(min)
60
Detection angle horizontal
(°)
30 - 360
Response value luminosity
(lx)
10 - 2000
Max. switching power
(W)
2000
Temperature
(°C)
0 - 45
Frequency
(Hz)
50 - 60
Height
(mm)
16
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Number of switching zones
1
Scan angle
(°)
360
Max. presence range
(m²)
165
Suitable for ceiling mounting
Yes
Connection type
Other
Diameter
(mm)
80
Built-in depth
(mm)
38
Built-in diameter
(mm)
65
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
220 - 240
Suitable for wall mounting
No
No
With connection cable
Yes
Yes
Passive infrared
Compatible with Casambi
No
Stock and logistics
Height
18 cm
Width
13 cm
Depth
14 cm
Packaging
box
Weight
382 g
HS code
8536508090
