Murrelektronik
27785

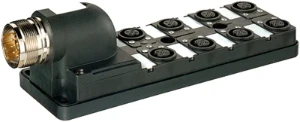

Passive sensor-actuator interface (without cable)
Manufacturer part number: 27785
Serie: Distribution Technology
Type: M12 distribution boxes
EAN-code: 4048879063180
SKU Omnical: 2445335
Stock: 0.
Estimated lead time: 11 days *
PreOrder
YRS
€
176,22
per item
€
154,90
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
27785 Murrelektronik Passive sensor-actuator interface (without cable)
Murrelektronik Passive sensor-actuator interface (without cable) MVP12, 8XM12, 5POLE, M23 19POL. CON. Connector exit 90°
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of connector for trunk line
M23 horizontal
Number of sensor-/actuator-slots
8
Number of channels per connector slot
2
Width
(mm)
50.2
Type of branches for sensor-/actuator cables
M12
Number of poles sensor/actuator slots
5
Rated voltage
(V)
24
Pollution degree
3
Operating voltage
(V)
18 - 30.2
Max. current carrying capacity per I/O signal
(A)
4
Max. current carrying capacity per socket
(A)
8
Max. total current
(A)
12
Diameter contact female
(mm)
12
Material contact body
Other copper alloys
Material of contact surface
Gold
Material insulation body
Polyamide (PA)
Thread sleeves sensor/actuator slots
M12
With LED indication
Yes
With potential separation
No
Connection for NPN-sensors
No
Material housing
Plastic
Colour housing
Black
Operating temperature
(°C)
-20 - 80
Degree of protection (IP)
IP65/IP67
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
17.2
Length
(mm)
150
Stock and logistics
Height
0.15 m
Width
0.05 m
Depth
0.017 m
Packaging
box
Weight
0.213 kg
HS code
85369010
Country of Origin
DE
